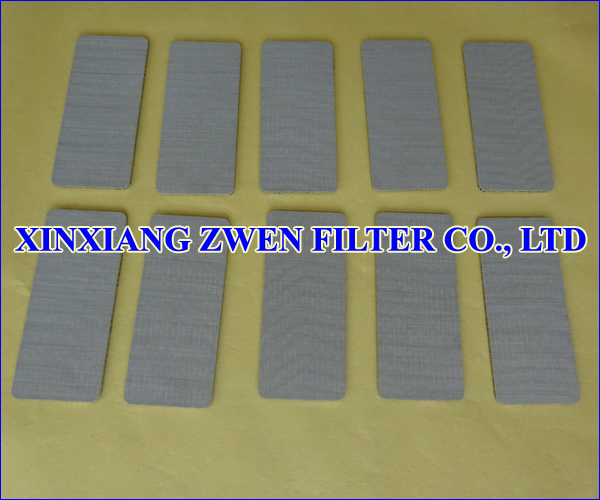

Sintered Mesh Filter Sheet
Sintered Porous Sheet

Sintered Porous Sheet

Sintered Porous Sheet Feature

1. Sintered porous sheet is made from multilayer zwen sintered wire mesh

2. Sintered porous sheet is sintered in a high temperature vacuum furnace

3. Sintered porous sheet is surface filtration

4. Sintered porous sheet is good for backwash because the pore passage of multilayer zwen sintered wire mesh aperture is very smooth

5. Sintered porous sheet has uniform pore size distribution

6. Wire mesh will not shed in the filtration process

7. High compression strength

8. High mechanical strength

9. High rigidity

10. High abrasion resistance

11. Good durability against most liquids, gases and aggressive steam

12. High temperature resistance

13. High filter rating accuracy

14. High filter efficiency

15. Good corrosion resistance

16. Washable and Cleanable

17. Reusable

18. Long service life



Sintered Porous Sheet Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating: 0.5-300 Microns

Filter Efficiency: > 99.99 %

Number of Layers: 2-20 Layers

Operation Temperature:  816

Length:  1200 mm

Width:  1000 mm

Regular Size: 500 mm*500 mm,500 mm*1000 mm,1000 mm*1000, 1200 mm*1000 mm or others

Thickness: 0.5 mm,1 mm,1.5 mm,2 mm,3 mm,5 mm or others


Application

Polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry


About Us

XINXIANG ZWEN FILTER CO.,LTD  produces pleated metal filter cartridge (pleated wire mesh filter cartridge, pleated sintered fiber felt filter cartridge), sintered metal filter basket, sintered metal filter cartridge (sintered fiber felt filter cartridge, sintered mesh filter cartridge, sintered powder filter cartridge), sintered metal filter disc (sintered mesh filter disc, sintered powder filter disc), sintered metal filter sheet (sintered fiber felt, sintered mesh, sintered powder filter sheet), sintered metal filter tube (sintered mesh filter tube, sintered powder filter tube).



With high-end sintering equipment, welding equipment and skilled workers, we have passed ISO 9001:2008 quality management system and SGS audit test.



Our products are used in petroleum industry, chemical industry, aerospace industry, pharmaceutical industry, food industry, beverage industry.



Our main markets are European market and North American market.
