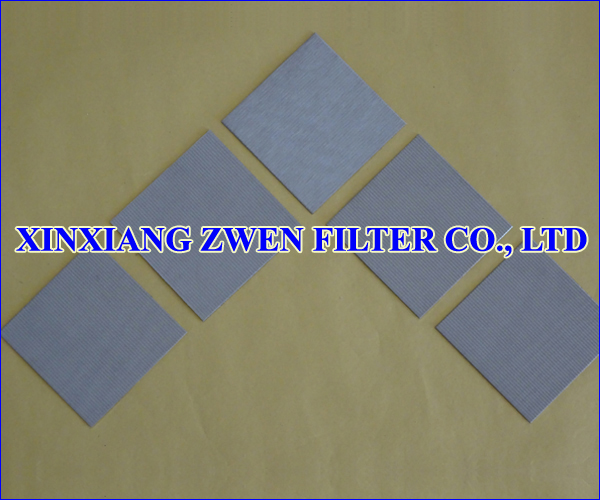

Sintered Mesh Filter Plate
Sintered Mesh Filter Plate

Sintered Mesh Filter Plate

Sintered Mesh Filter Plate Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating Range: 0.5 Micron ~ 2000 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Length:  1200 mm

Width:  1000 mm

Regular Size: 500 mm*500 mm,500 mm*1000 mm,1000 mm*1000, 1200 mm*1000 mm or others

Thickness: 0.5 mm,1 mm,1.5 mm,2 mm,3 mm,5 mm or others


Sintered Mesh Filter Plate Feature

1. Sintered mesh filter plate is made from multilayer wire mesh

2. Sintered mesh filter plate is sintered in a high temperature vacuum furnace

3. Sintered mesh filter plate is a good filter media for surface filtration

4. Sintered mesh filter plate is good for backwash because the pore passage of wire mesh aperture is very smooth

5. Sintered mesh filter plate has uniform pore size distribution

6. High compression strength

7. High mechanical strength

8. High rigidity

9. High abrasion resistance

10. High durability against most liquids, gases and aggressive steam

11. High temperature resistance

12. High filter rating accuracy

13. High filter efficiency

14. High corrosion resistance

15. Washable and Cleanable

16. Reusable

17. Long service life


Application

Sensor, inductor, detector, survey meter, pressure release device, protein analysis, polymer extrusion device, PEM electrolyzers, membrane filtration, polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry


About Us

XINXIANG ZWEN FILTER CO.,LTD  produces sintered mesh filter disk, sintered wire mesh filter disk, sintered mesh filter cartridge, sintered wire mesh filter cartridge, sintered mesh filter element, sintered wire mesh filter element, sintered mesh filter disc, sintered wire mesh filter disc, sintered mesh filter plate, sintered wire mesh filter plate, sintered mesh filter sheet, sintered wire mesh filter sheet, sintered mesh filter tube, and sintered wire mesh filter tube.


XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.


XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.


XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.


XINXIANG ZWEN FILTER CO.,LTD Key Clients: Parker, GKN, SIEMENS, MAHLE.
